Dimensions and Areas
• Total Floor Area: 1,448 / 1,617 sq. ft. (134.5 / 150.2 m²)
• Building Footprint: 2,793 sq. ft. (259.5 m²)
• Construction Volume: 21,189 cu. ft. (600 m³)
• Building Height: 14.1 ft. (4.3 m)
• Roof Slope: 1°
• Roof Area: 1,496 sq. ft. (139.05 m²)
Room Dimensions
• Entryway: 83 sq. ft. (7.7 m²)
• Living Room: 325 sq. ft. (30.2 m²)
• Kitchen: 98 sq. ft. (9.1 m²)
• Pantry: 34 sq. ft. (3.2 m²)
• Utility Room: 59 sq. ft. (5.5 m²)
• Hallway: 113 sq. ft. (10.5 m²)
• Walk-in Closet: 39 sq. ft. (3.6 m²)
• Bedroom 1: 165 sq. ft. (15.3 m²)
• Bedroom 2: 153 sq. ft. (14.2 m²)
• Master Bedroom: 283 sq. ft. (26.3 m²)
• Bathroom 1: 46 sq. ft. (4.3 m²)
• Bathroom 2: 50 sq. ft. (4.6 m²)
• Terrace 1: 0.0 / 121 sq. ft. (0.0 / 11.2 m²)
• Terrace 2: 0.0 / 48 sq. ft. (0.0 / 4.5 m²)
Construction Technology
• Foundation Type: Monolithic strip foundation
• Roofing Material: PVC membrane
• Wall Construction: Masonry
• Ceiling Type: Monolithic reinforced concrete
Functional Description

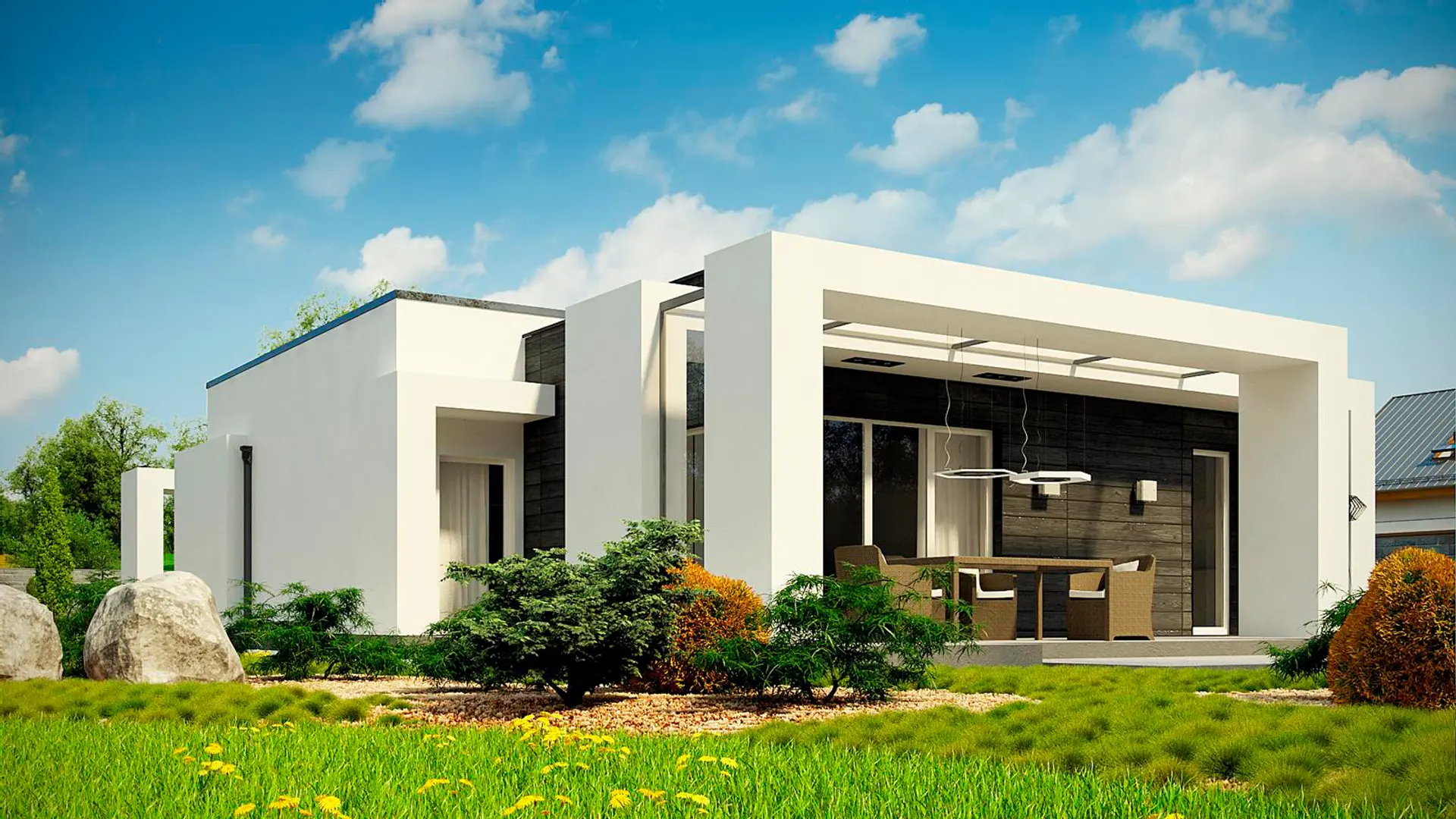

A single-story home with a flat roof designed for comfort, practicality, and modern aesthetics.
Advantages of the Project:
1. Unique Exterior Design: The home’s striking appearance is achieved through large glass surfaces and a combination of wooden cladding and white plaster.
2. Zoned Layout: Clearly defined living zones provide a comfortable living experience even when entertaining guests.
3. Panoramic Windows: Large windows offer excellent natural light and stunning views of the surrounding landscape.
4. Three Bedrooms: Ideal for a family with two children, with each bedroom featuring access to spacious terraces and two well-equipped bathrooms.
5. Single-Level Layout: A step-free design ensures safety and ease of movement, especially for families with young children or seniors.
This home is ideal for a family of four, prioritizing comfort, practicality, and elegant simplicity.
Lot and Facade Requirements
• Minimum Lot Dimensions:
• Width: 55.1 ft. (16.81 m)
• Length: 110.8 ft. (33.78 m)
• Facade Width: 35.5 ft. (10.81 m)
